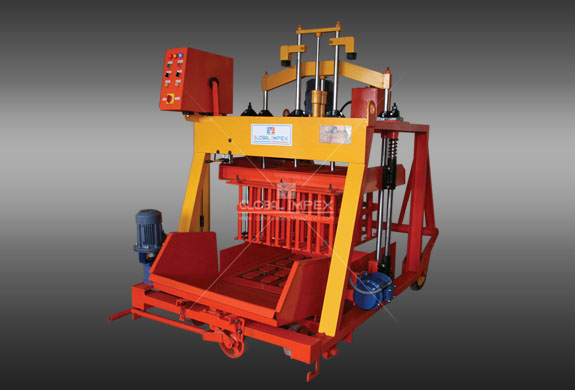

Global Jumbo 860G
Specification:
Production Details: (10 hours)
About The Machine:
The model global jumbo 860-g s machine produce 400 x 200 x 100mm blocks per cycle 16 blocks. this machine is built using simple designs, which make them high on efficiency and low on maintenance. Advanced features and innovative designing makes this model provides quick and easy production.
This is a movable hydraulic concrete block making machine on wheels. it will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. This machine applies pressure of 2000 psi. In the machine fitted 2 no’s high frequency vibrator for high compaction and 2 moving motor for easy moving. This machine can be used to produce hollow block, solid blocks, and bricks and interlocking pavers.
| No. Of operations | 50 - 60 per hour |
| Vibro motor 2 nos | 440v, 3ph |
| Hydraulic pump motor | 5hp, 440v, 3ph |
| Travel motor | 1 hp, 440v, 3ph |
| Machine weight | 1750kg (approx. ) |
| Cubic space occupied by the machine | 2100 x 1275 x 1750 mm (approx) |
Production Details: (10 hours)
| 400 x 200 x 200 mm | 8 blocks per cycle | perday 4800 blocks |
| 400 x 200 x 150 mm | 10 blocks per cycle | per day 6000 blocks |
| 400 x 200 x 100 mm | 16 blocks per cycle | perday 9600 blocks |
| 200 x 100 x 90 mm | 20 blocks per cycle | perday 10000 blocks |
About The Machine:
The model global jumbo 860-g s machine produce 400 x 200 x 100mm blocks per cycle 16 blocks. this machine is built using simple designs, which make them high on efficiency and low on maintenance. Advanced features and innovative designing makes this model provides quick and easy production.
This is a movable hydraulic concrete block making machine on wheels. it will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. This machine applies pressure of 2000 psi. In the machine fitted 2 no’s high frequency vibrator for high compaction and 2 moving motor for easy moving. This machine can be used to produce hollow block, solid blocks, and bricks and interlocking pavers.
