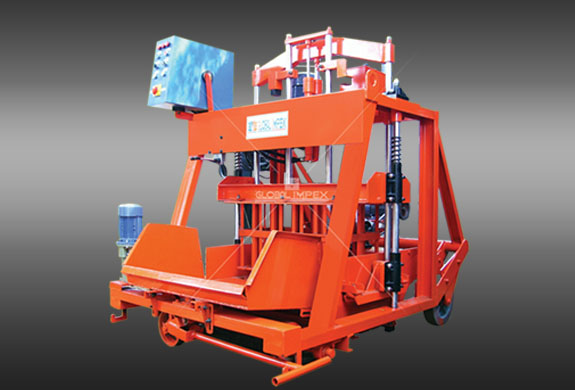

Global 860G
Specification:
Production Details: (10 hours)
About The Machine:
This is an Hydraulic Concrete Block Making Machine on wheels. It will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. Several standard moulds are readily available. Custom moulds can be produced. This machine applies pressure of 2000 PSI. This machine can be used to produce hollow block, solid blocks, bricks galore and interlocking pavers.
| Power Required | 5 Hp |
| No. Of operations | 50 - 60 per hour |
| Vibro motor | 1.5Hp, 440V, 3Ph |
| Hydraulic pump motor | 3Hp, 440V, 3Ph |
| Travel motor | 0.5Hp, 440V, 3Ph |
| Machine weight | 1500Kg (Approx.) |
| Cubic space occupied by the machine | 1700 X 1275 X 1700 Mm |
Production Details: (10 hours)
| 400 x 200 x 200 mm | 4 blocks per cycle | perday 2400 blocks |
| 400 x 200 x 150 mm | 5 blocks per cycle | per day 3000 blocks |
| 400 x 200 x 100 mm | 8 blocks per cycle | perday 4800 blocks |
| 200 x 100 x 90 mm | 16 blocks per cycle | perday 10000 blocks |
About The Machine:
This is an Hydraulic Concrete Block Making Machine on wheels. It will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. Several standard moulds are readily available. Custom moulds can be produced. This machine applies pressure of 2000 PSI. This machine can be used to produce hollow block, solid blocks, bricks galore and interlocking pavers.
